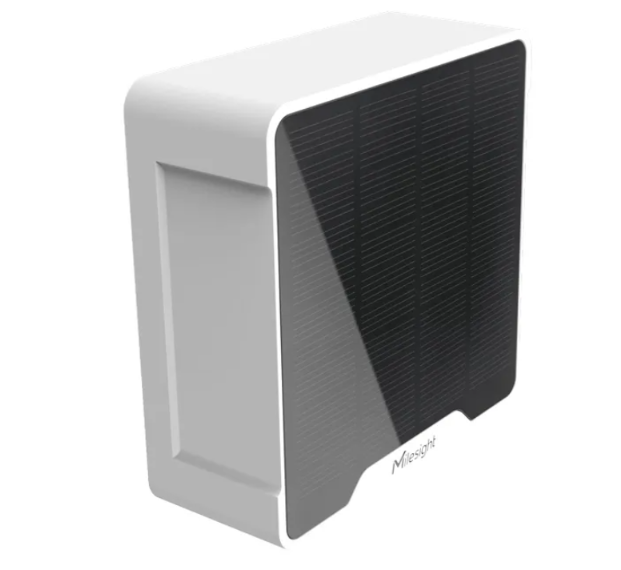

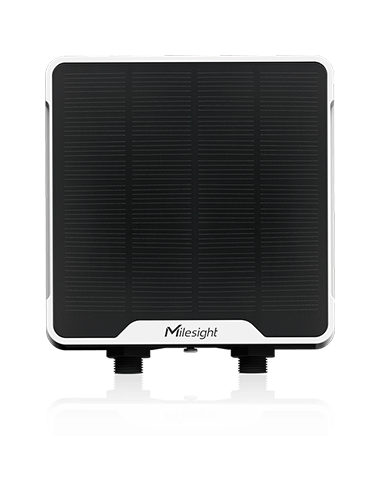

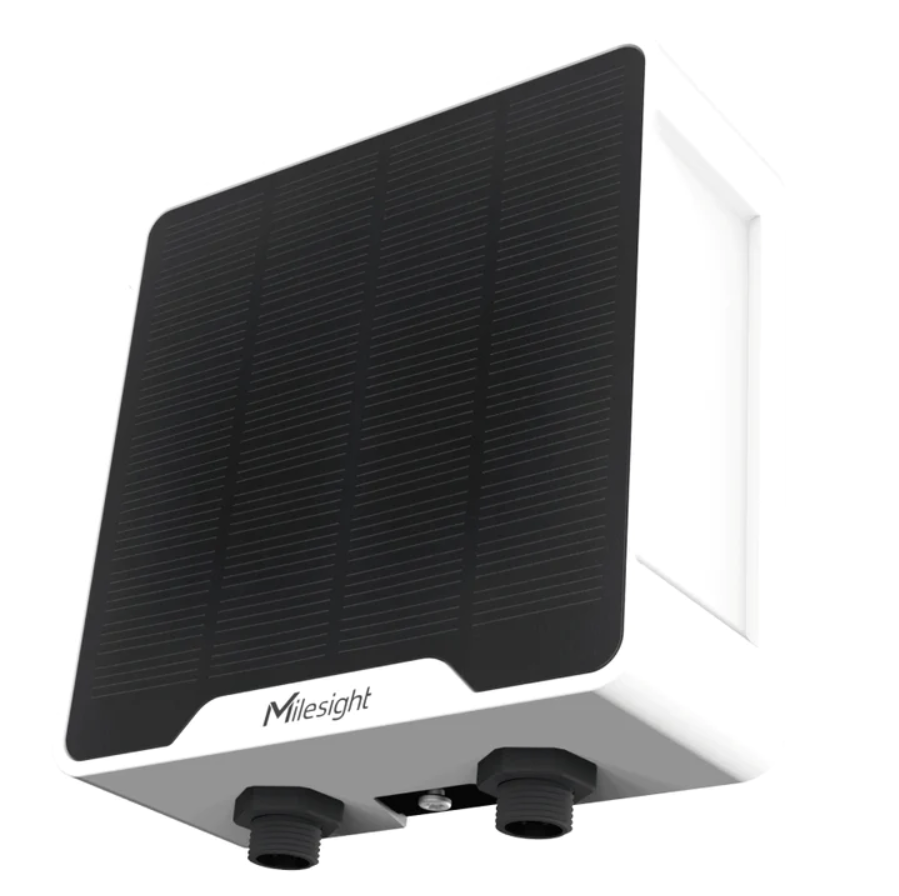

ASPERIOT: UC501 v2

https://www.jotio.tech/web/image/product.template/405/image_1920?unique=b4f6a9b

The IoT Controller with a replaceable Li-SOCI2 battery with a capacity of 19,000 mAh enables the transmission of industrial data streams via the LoRaWAN network with a range of up to 15 km in rural areas and 2 km in urban areas.

5,576.89 Kč 5576.89 CZK 5,576.89 Kč  With VAT

0.00 Kč  With VAT

Not Available For Sale

This combination does not exist.

Contact Us


Rich industrial interfaces

The device contains several industrial interfaces for simultaneous monitoring and control of sensors. Thanks to industrial interfaces RS232, RS485, GPIO and analog output, it finds its application in various applications. For example, you can connect a gas meter, water meter or flow meter to it and use it as a pulse counter.


Rich industrial interfaces

The device contains several industrial interfaces for simultaneous monitoring and control of sensors. Thanks to industrial interfaces RS232, RS485, GPIO and analog output, it finds its application in various applications. For example, you can connect a gas meter, water meter or flow meter to it and use it as a pulse counter.



Autonomous operation

Get maximum control over your device through local or remote control. Reliable operation is ensured even in the event of network unavailability, when the device operates on the basis of preset commands.


Autonomous operation

Get maximum control over your device through local or remote control. Reliable operation is ensured even in the event of network unavailability, when the device operates on the basis of preset commands.




Robust cover

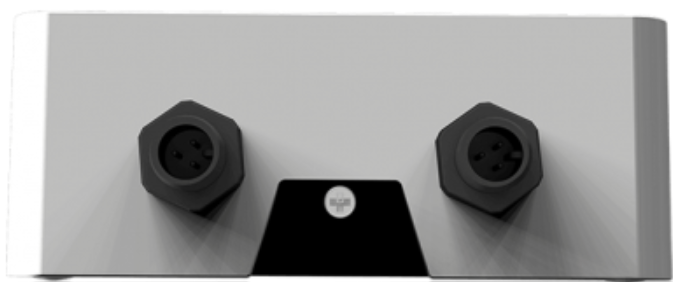

IP67-rated devices and M12 connectors ensure protection against dust and water. Thanks to this, the device is suitable not only for outdoor applications, but also for harsh environments.

Robust cover

IP67-rated devices and M12 connectors ensure protection against dust and water. This makes the device suitable not only for outdoor applications, but also for harsh environments.


Long-term battery operation

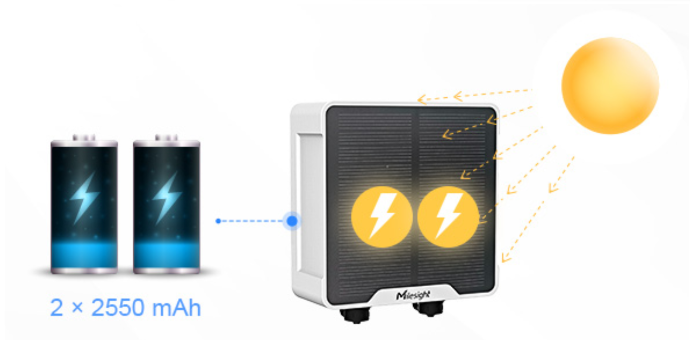

The control unit is equipped with two replaceable batteries, which, together with the built-in solar panel, ensure long-term operation.

Long-term battery operation

The control unit is equipped with two replaceable batteries, which, together with the built-in solar panel, ensure long-term operation.

Flexible installation

Customize your space according to your possibilities and needs. The device can be placed on an existing wall or you can use the option of placing it on a post and thus get maximum flexibility in the layout of the space.

Flexible installation

Customize your space according to your possibilities and needs. The device can be placed on an existing wall or you can use the option of placing it on a post and thus get maximum flexibility in the layout of the space.

Where can it be used?

Where can it be used?

Monitoring of greenhouses

Soil monitoring

Remote readings

Monitoring of greenhouses

Soil monitoring

Remote readings

Parameters and specifications

Dimensions ​ ​ ​ ​​ ​ ​ ​ ​​120,1 x 120,1 x 55,4 mm
​Frequency ​ ​ ​ ​ ​ ​ ​CN470/IN865/EU868/AU915/US915/KR920/AS923
Tx Power ​ ​ ​ ​​​16 dBm
Sensitivity​ ​ ​ ​ ​ ​ ​-137 dBm @300bps
Mode​ ​ ​​ ​ ​ ​ ​ ​ ​OTAA/ABP Class A

Interface 1 ​ ​ ​ ​  ​ ​ ​ ​ ​​ ​​​​​ ​ ​​2 × GPIO
​ ​ ​ ​ ​ ​​​​​​ ​ ​1 × RS485/RS232 switchable
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​​1 × 3.3V output
​ ​ ​ ​ ​ ​  ​ ​ ​ ​ ​ ​ ​​​ ​ ​ ​ ​ ​ ​​ ​1 × 5/9/12V output switchable
​
Interface 2 ​ ​ ​ ​ ​ ​ ​ ​​​ ​ ​ ​ ​​2 × analog input
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​​ ​ ​ ​ ​ ​ ​​1 × 3.3V output
​ ​ ​ ​ ​  ​ ​ ​ ​ ​ ​ ​​​ ​ ​ ​ ​ ​ ​ ​1 × 5/9/12V output switchable
Data interface connector ​ ​ ​​ ​M12 (A)
Device configuration ​ ​ ​ ​ ​ ​ ​ ​​NFC​
Power input interface ​  ​ ​ ​ ​ ​ ​1 × M12 A-coded male interface
​Power supply  ​ ​ ​ ​ ​​​ ​ ​ ​ ​ER34615 Li-SOCl2, 5-24 VDC
Battery capacity  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​5100 mAh battery with rechargeable solar panel
Solenoid interface ​  ​ ​ ​ ​ ​ 2 × 2-wire 12 VDC two-state solenoid valve control
Ingress Protection  ​ ​ ​ ​ ​ ​​ ​ ​​IP67
​Operating temperatures​ ​​ ​ ​​​ ​ ​-20ºC to +60ºC
Installation ​ ​ ​​ ​ ​ ​​ wall/column



Parameters and specifications

Dimensions
120,1 x 120,1 x 55,4 mm

Frequency
CN470/IN865/EU868/AU915/US915/KR920/AS923

Tx Power
16 dBm

Sensitivity
​​-137 dBm @300bps

Mode
OTAA/ABP Class A

Interface 1
2 × GPIO ​ ​ ​ ​ ​ ​​​​​
1 × RS485/RS232 switchable
​1 × 3.3V output
​1 × 5/9/12V output switchable
​
Interface 2
2 × analog input
​1 × 3.3V output
​1 × 5/9/12V output switchable

Data interface connector
M12 (A)

Device configuration
NFC​

Power input interface
1 × M12 A-coded male interface
​

Input power supply
ER34615 Li-SOCl2, 5-24 VDC

Battery capacity
2 x 2550 mAh battery with rechargeable solar panel

Solenoid interface
2 × 2-wire 12 VDC two-state solenoid valve control

Ingress Protection ​
IP67

Operating temperatures
-20ºC to +60ºC

Installation
wall/column


​Where to apply and areas of application

With features such as waterproof and flexible power supply, it can be used even in harsh environments.​

​AGRICULTURE

​monitoring in greenhouses
​monitoring water and air quality

​INDUSTRY

Consumption readings from water meters, gas meters, electricity meters and other meters
