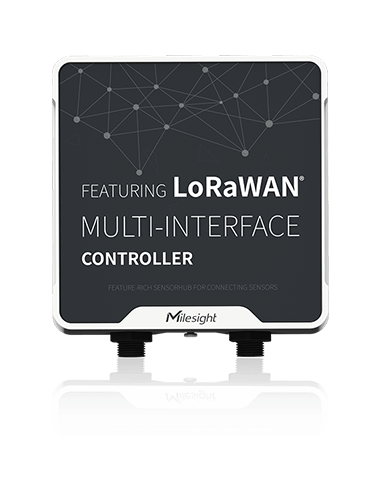

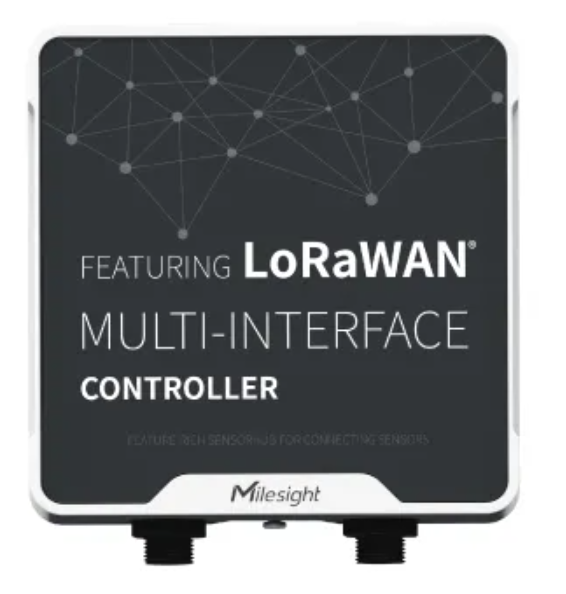

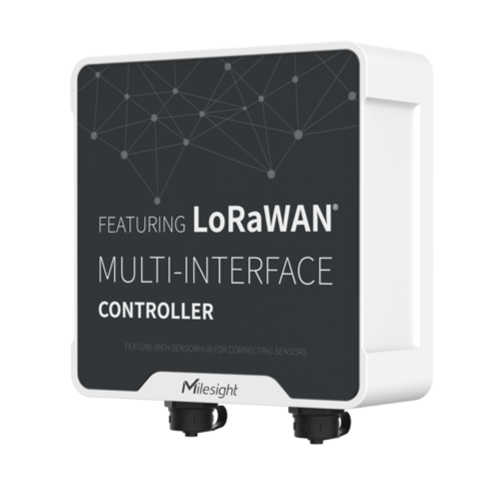

ASPERIOT: UC502 v2
The IoT Controller with a replaceable battery

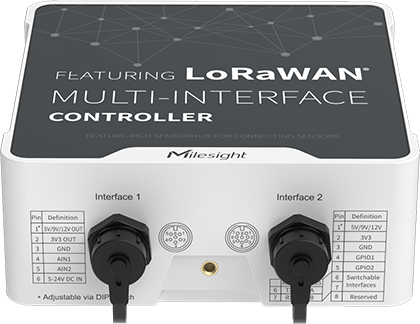

Rich industrial interfaces
The device contains several industrial interfaces for simultaneous monitoring and control of sensors. Thanks to industrial interfaces RS232, RS485, GPIO and analog output, it finds its application in various applications. For example, you can connect a gas meter, water meter or flow meter to it and use it as a pulse counter.
Rich industrial interfaces
The device contains several industrial interfaces for simultaneous monitoring and control of sensors. Thanks to industrial interfaces RS232, RS485, GPIO and analog output, it finds its application in various applications. For example, you can connect a gas meter, water meter or flow meter to it and use it as a pulse counter.
Autonomous operation
Get maximum control over your device through local or remote control. Reliable operation is ensured even in the event of network unavailability, when the device operates on the basis of preset commands.
Autonomous operation
Get maximum control over your device through local or remote control. Reliable operation is ensured even in the event of network unavailability, when the device operates on the basis of preset commands.
Robust cover
IP67-rated devices and M12 connectors ensure protection against dust and water. Thanks to this, the device is suitable not only for outdoor applications, but also for harsh environments
Robust cover
IP67-rated devices and M12 connectors ensure protection against dust and water. Thanks to this, the device is suitable not only for outdoor applications, but also for harsh environments
Versatility and adaptability
The SDI-12 interface allows connecting a wide range of environmental monitoring devices, such as weather sensors, hydrological sensors and other agricultural sensors.
Versatility and adaptability
The SDI-12 interface allows connecting a wide range of environmental monitoring devices, such as weather sensors, hydrological sensors and other agricultural sensors.

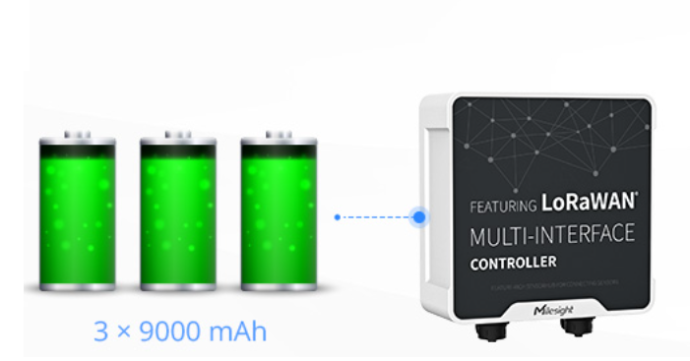

Long-term battery operation
The control unit is equipped with three replaceable batteries with a lifespan of up to 10 years.
Long-term battery operation
The control unit is equipped with three replaceable batteries with a lifespan of up to 10 years.

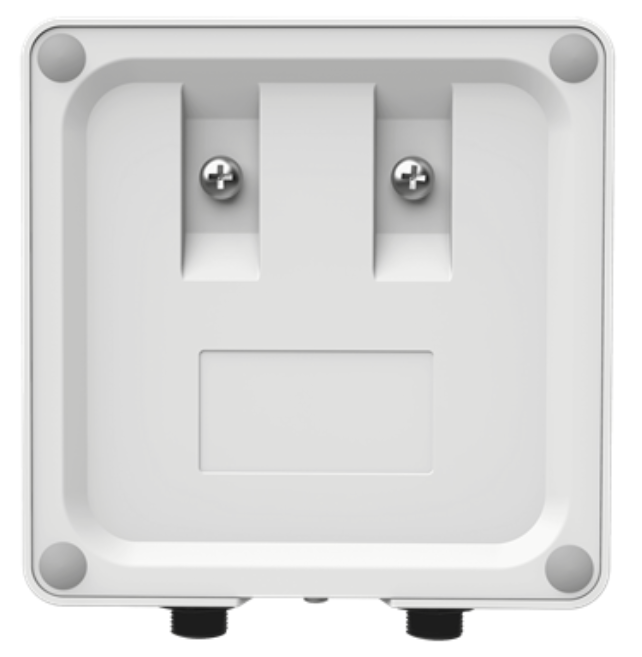

Flexible installation
Customize your space according to your possibilities and needs. The device can be placed on an existing wall or you can use the option of placing it on a post and thus get maximum flexibility in the layout of the space.
Flexible installation
Customize your space according to your possibilities and needs. The device can be placed on an existing wall or you can use the option of placing it on a post and thus get maximum flexibility in the layout of the space.
Where can it be used?
Monitoring of greenhouses
Soil monitoring
Remote readings
Where can it be used?
Monitoring of greenhouses
Soil monitoring
Remote readings
Parameters and specifications
Dimensions 120,1 x 120,1 x 55,4 mm
Frequency LoRaWAN EU868
Tx Power 16 dBm
Sensitivity -137 dBm @300bps
Mode OTAA/ABP Class A
Interface 1 2 × GPIO
1 × RS485/RS232 switchable
1 × 3.3 V output
1 × 5/9/12V output switchable
Interface 2 2 × analog input
1 × 3.3V output
1 × 5/9/12V output switchable
Data interface connector M12 (A)
Device configuration NFC
Power input interface 1 × M12 A-coded male interface
Input power supply ER34615 Li-SOCl2, 5-24 VDC
Battery 19 1000 mAh
Solenoid interface 2 × 2-wire 12 VDC two-state solenoid valve control
Ingress Protection IP67
Operating temperatures -20ºC to +60ºC
Parameters and specifications
Dimensions
120,1 x 120,1 x 55,4 mm
Frequency
CN470/RU864/IN865/EU868/AU915/US915/KR920/AS923
Tx Power
16 dBm
Sensitivity
-137 dBm @300bps
Mode
OTAA/ABP Class A
Interface 1
2 × GPIO
1 × RS485/RS232 switchable
1 × 3.3V output
1 × 5/9/12V output switchable
Interface 2
2 × analog input
1 × 3.3V output
1 × 5/9/12V output switchable
Data interface connector
M12 (A)
Device configuration
NFC
Power input interface
1 × M12 A-coded male interface
Input power supply
ER34615 Li-SOCl2, 5-24 VDC
Battery
19 000 mAh
Solenoid interface
2 ×2-wire 12 VDC two-state solenoid valve control
Ingress Protection
IP67
Operating temperatures
-20ºC to +60ºC
Installation
wall/column
Where to apply and areas of application
With features such as waterproof and flexible power supply, it can be used even in harsh environments.
AGRICULTURE
monitoring in greenhouses
monitoring water and air quality
INDUSTRY
Consumption readings from water meters, gas meters, electricity meters and other meters
