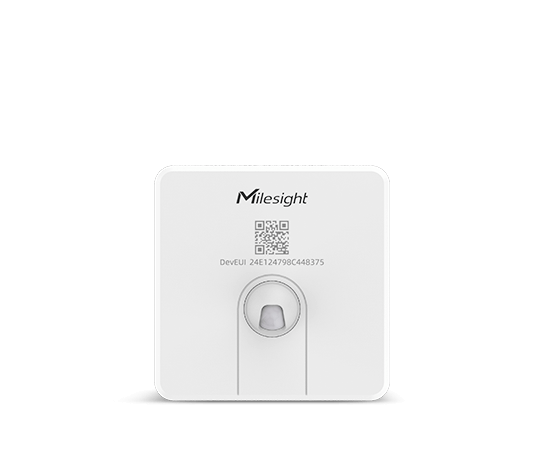

ASPERIOT: VS341

https://www.jotio.tech/web/image/product.template/561/image_1920?unique=57c3b21

7,207.97 Kč 7207.97 CZK 7,207.97 Kč  With VAT

4,500.00 Kč  With VAT

Not Available For Sale

This combination does not exist.

Contact Us


The ideal solution for those looking for a way to effectively monitor seat occupancy in a variety of areas. The sensor is useful for monitoring workplace occupancy, restaurant table occupancy or seat occupancy in theaters, concert halls, cinemas, conference halls and other public places.

The ideal solution for those looking for a way to effectively monitor seat occupancy in a variety of areas. The sensor is useful for monitoring workplace occupancy, restaurant table occupancy or seat occupancy in theaters, concert halls, cinemas, conference halls and other public places.


Highly sensitive

The sensor is equipped with dual PIR and Thermopile technology, thanks to which reliable detection of occupancy of the monitored area is achieved. The sensor is able to record when tables and seats are occupied with an accuracy of up to 98%.

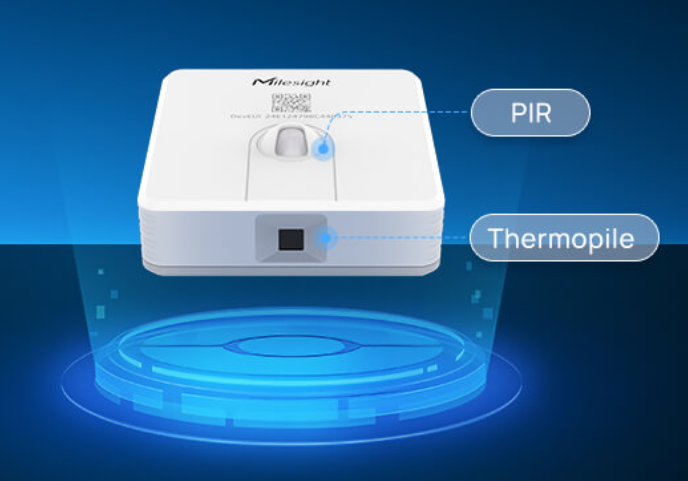

PIR and Thermopile


Highly sensitive

The sensor is equipped with dual PIR and Thermopile technology, thanks to which reliable detection of occupancy of the monitored area is achieved. The sensor is able to record when tables and seats are occupied with an accuracy of up to 98%.


Occupancy detection

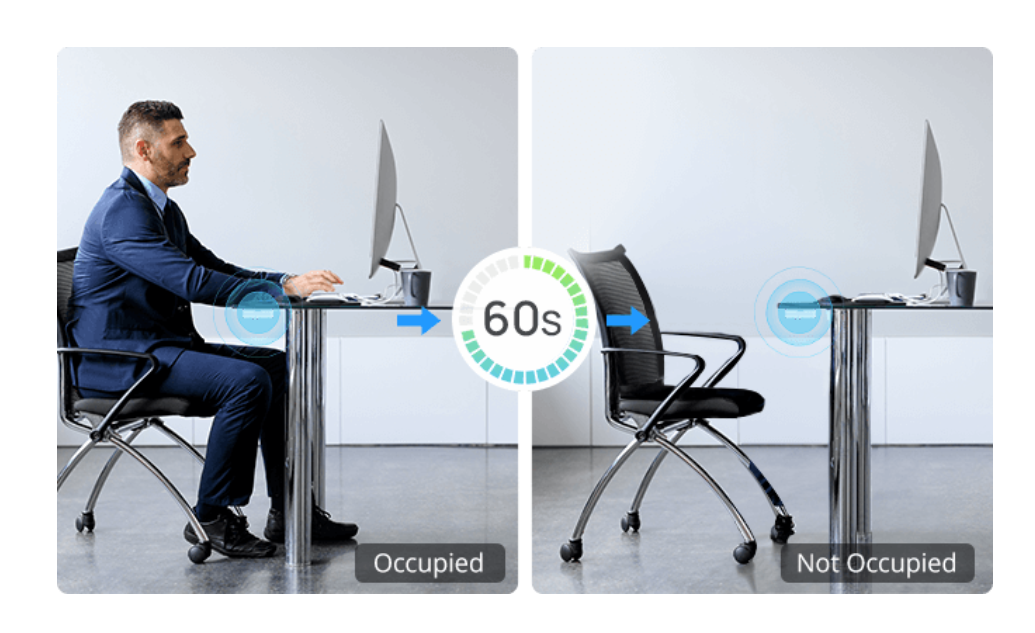

Fast reaction

The sensor is able to detect occupancy status after 13 seconds and unoccupied status after 60 seconds, bringing near real-time monitoring of the area.

Fast reaction

The sensor is able to detect occupancy status after 13 seconds and unoccupied status after 60 seconds, bringing near real-time monitoring of the area.

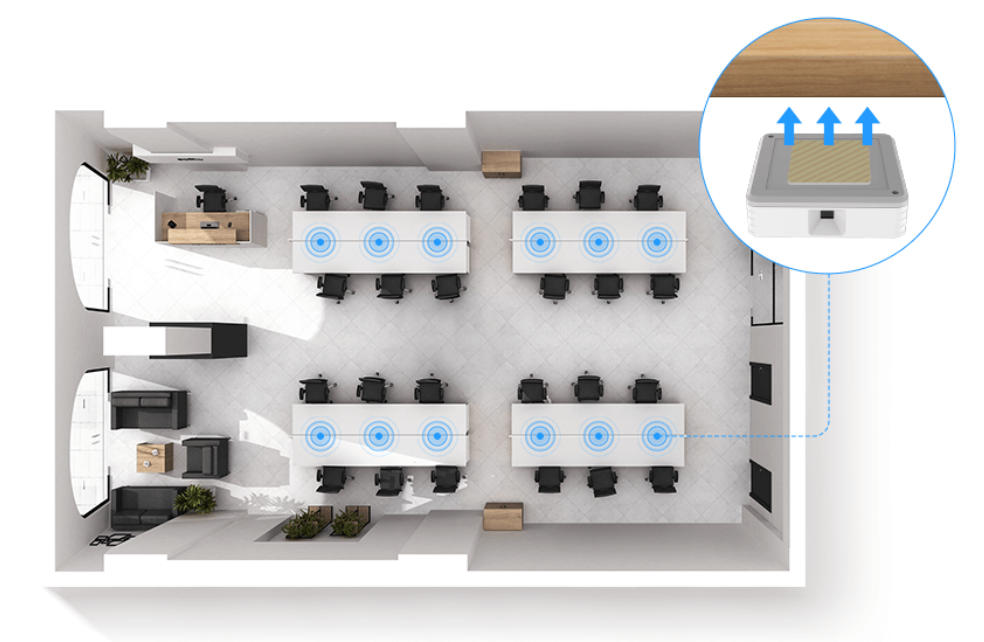

Easy and quick installation

Thanks to wireless operation, there is no need for complex cabling. The practical design and adhesive fastening allow convenient and quick mass deployment.

Easy deployment of sensors


Easy and quick installation

Thanks to wireless operation, there is no need for complex cabling. The practical design and adhesive fastening allow convenient and quick mass deployment.


Asperiot: VS341

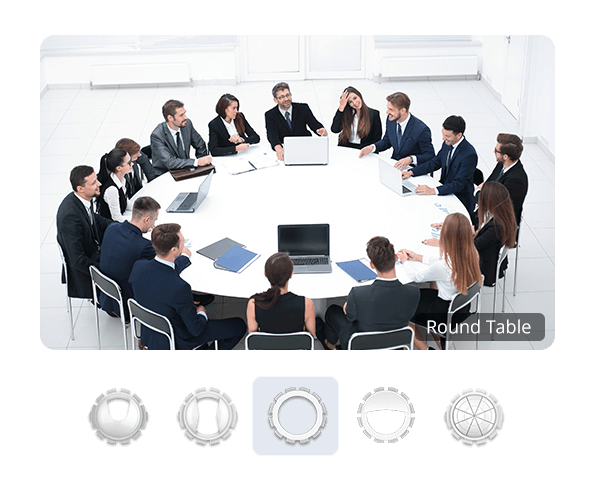

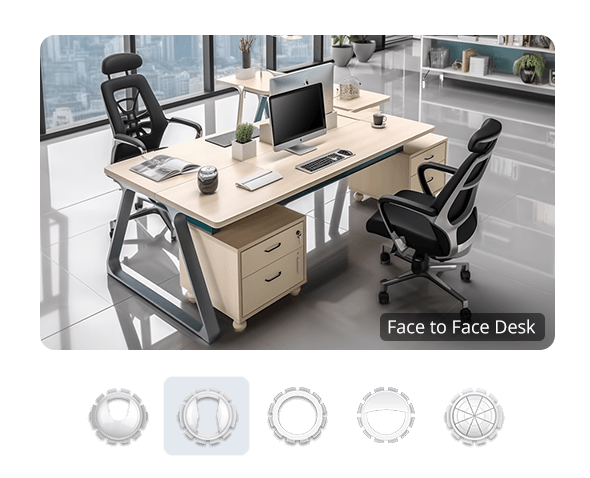

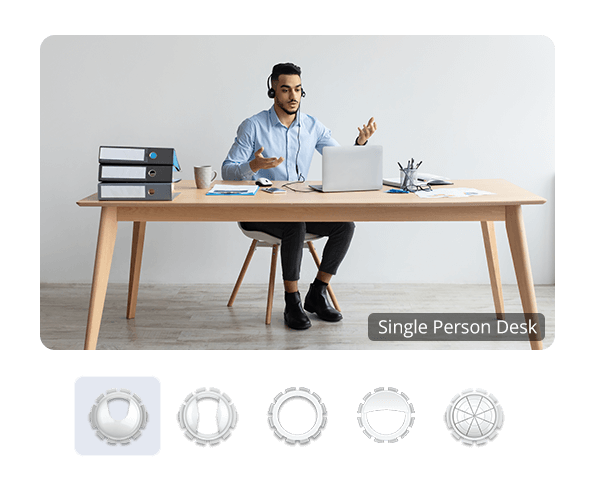

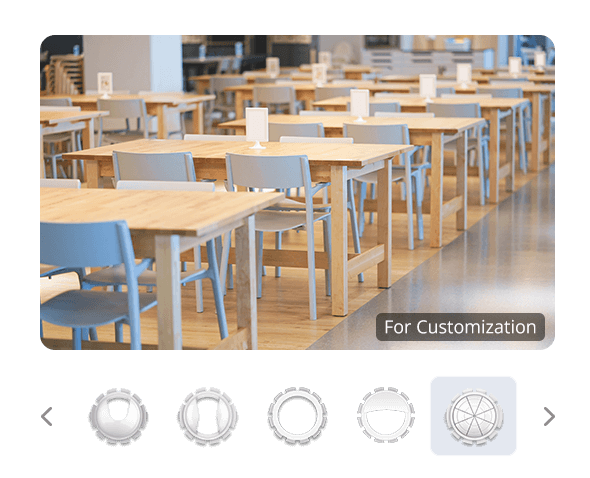

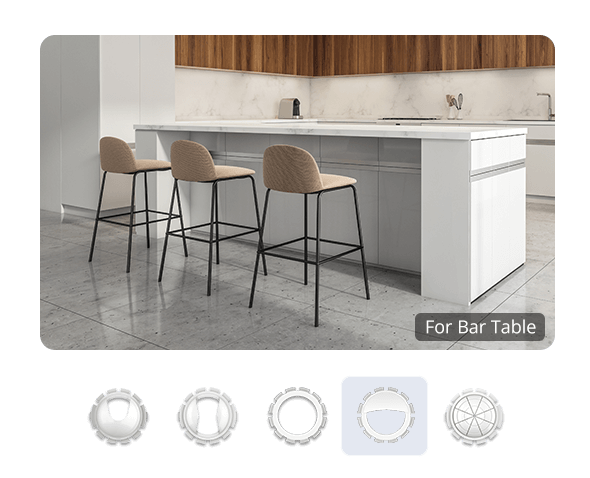

Adjustable detection angles

Target areas can be changed as needed. The sensor is equipped with 5 different covers to prevent unnecessary detection. The device is thus suitable for detecting different types of tables with different ranges.

Adjustable detection angles

Target areas can be changed as needed. The sensor is equipped with 5 different covers to prevent unnecessary detection. The device is thus suitable for detecting different types of tables with different ranges.


Typical Application


Typical Application

Obsazenost pracovního místa

Office

Obsazenost restaurací

Restaurant

Obsazenost sálů

Conference

Office

Restaurant

Conference

Parameters and specifications


Frequency ​ ​ ​​​EU868
Tx Power ​ ​ ​ ​ ​ ​​  ​ ​​ ​ ​ ​ ​ ​ ​  ​ ​​ ​  ​ ​ ​​​​​16 dBm
Sensitivity ​ ​ ​  ​ ​​​  ​ ​​ ​ ​ ​  ​  ​ ​ ​​​-137dBm @300bps
Mode​ ​  ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​  ​ ​​ ​​ ​ ​ ​​OTAA/ABP Class A​


Technology ​ ​ ​ ​ ​ ​ ​ ​ ​​​PIR, Thermopile
Recognition Rate  ​ ​ ​ ​ ​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​ ​ ​​up to 98 %
PIR Detection Area  ​ ​ ​ ​ ​  ​ ​ ​  ​ ​ ​ ​ ​ ​  ​ ​ ​  ​​​107° Horizontal, 107 ° Vertical
PIR Detection Distance  ​ ​ ​ ​​within 1 m
Thermopile Detection Area ​ ​​50° (50 % level of sensitivity)

Others
Button ​ ​ ​ ​ ​ ​ ​ ​ ​ ​1x Power/Reset
Indicator ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​​1x Status​
Battery ​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​  ​ ​ ​ ​ ​ ​1 x 4000 mAh ER18505 Li-SOCL2 baterie
Battery Life ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​ ​ ​  ​ ​ ​​​​​Around 5 years
Operating Temperature  ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​ ​​​ ​ ​ ​ ​​​​​-20°C to +60°C​
Relative Humidity ​ ​ ​ ​ ​ ​ ​​​0-95°(Non-condensing)
Ingress Protection ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​  ​ ​​​​ ​​​IP30
Installation ​ ​  ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​ ​ 3M Tape Mounting, Wall Screw Mounting
Weight ​ ​ ​ ​ ​ ​​ ​ ​ ​ ​​ ​​90g
Color & Material ​ ​ ​ ​ ​ ​ ​​White + Grey, PC + ABS (Flame Retardant)
Dimension​​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​  ​ ​  ​ ​ ​​​​ ​ ​​73 x 73 x 26 mm (Without PIR Cover)


Parameters and specifications


Frequency
EU868

Tx Power
​​​​16 dBm

Sensitivity
-137dBm @300bps

Mode​
OTAA/ABP Class A​

Technology
​​PIR, Thermopile

Recognition Rate
up to 98 %

PIR Detection Area​
107° Horizontal, 107 ° Vertical

PIR Detection Distance
within 1 m

Thermopile Detection Area
50° (50 % level of sensitivity)

Others
Button
​1x Power/Reset

Indicator
1x Status​

Battery
​1 x 4000 mAh ER18505 Li-SOCL2 baterie

Life Battery
Around 5 years

Operating Temperature
​-20°C to +60°C​

Relative Humidity
​​0-95°(Non-condensing)

Ingress Protection
​IP30

Installation
​​​3M Tape Mounting, Wall Screw Mounting

Weight
90g

Color & Material
White + Grey, PC + ABS (Flame Retardant)

​Dimension​​
​73 x 73 x 26 mm (Without PIR Cover)
