Accurate location tracking
The outdoor tracker allows you to provide an overview of the location of vehicles or other objects using GNSS in cooperation with Wi-Fi localization. It is equipped with tilt and temperature sensors, which will enable comprehensive data collection.
Accurate location tracking
The outdoor tracker allows you to provide an overview of the location of vehicles or other objects using GNSS in cooperation with Wi-Fi localization. It is equipped with tilt and temperature sensors, which will enable comprehensive data collection.
Three tracking modes
Thanks to three working modes, effective and smooth monitoring can take place exactly according to your needs. Set a reporting interval of up to 5 time periods or track your assets based on changes in their status.
Three tracking modes
Thanks to three working modes, effective and smooth monitoring can take place exactly according to your needs. Set a reporting interval of up to 5 time periods or track your assets based on changes in their status.
Suitable for harsh environments
With IP67 and IK09 protection, it can withstand dust, water and impact. It will therefore find its use even in the most demanding conditions.
In addition, it includes smart features such as an accelerometer and an anti-theft button that detects when the tracker is removed.
Suitable for harsh environments
With IP67 and IK09 protection, it can withstand dust, water and impact. It will therefore find its use even in the most demanding conditions.
In addition, it includes smart features such as an accelerometer and an anti-theft button that detects when the tracker is removed.

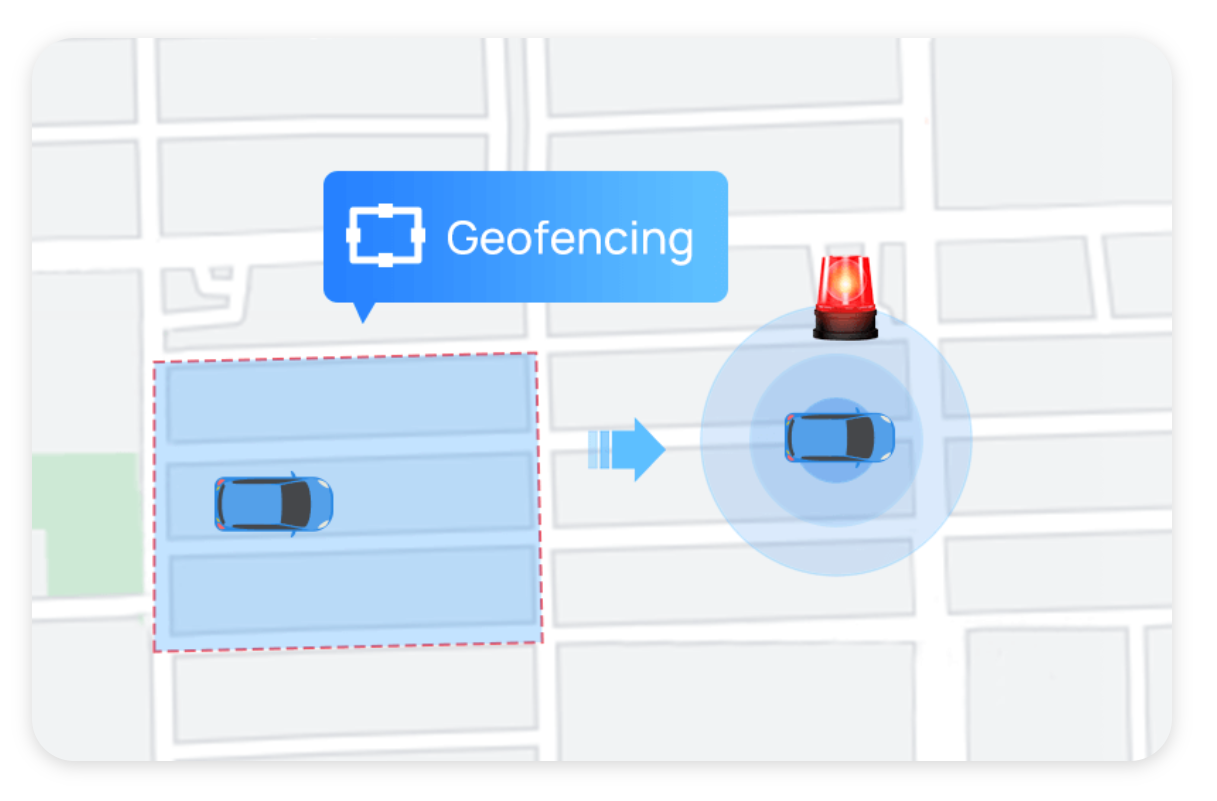

Define safe zones
The Geofencing function allows you to set a virtual perimeter. You will be notified if the tracked object leaves or returns to this zone.
Define safe zones
The Geofencing function allows you to set a virtual perimeter. You will be notified if the tracked object leaves or returns to this zone.
Keep track of your valuables
Vehicle tracking
Monitoring of construction machinery
Forklift monitoring
Parameters and specifications
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
Tx Power 16dBm(868MHz)/20dBm(915MHz)/19dBm(470MHz)
Sensitivity -137dBm@300bps
Mode OTAA/ABP Class A
GNSS Positioning
Position Accuracy 5.0 m (Direct Line of Sight)
Resolution Longtitude/Latitude: 0.000001
Time To First Fox Cold Start: 37s
Hot Start: 1s
Sensitivity
Tracking -167dBm
Reacquisition -160dBm
Cold Start -148dBm
Hot Start -159dBm
Wi-Fi Indoor asset location using Wi-Fi access point scanning (device doesnot connect to Wi-Fi)
Wi-Fi Parameters BSSID,RSSI
Wi-Fi Standard 802.11b/g/n2. 4GHz
Device Motion Normal/Tilt
Teplotní rozsah -40 to 125°C
Resolution 0,1°C
Power On & Off NFC, Power Button (Internal)
Configuration NFC, Bluetooth 5. 3
Power Supply 4×2700mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life (25°C) Twice Daily Location Updates to 15 years
Tenth Daily Location Updates to 8 years
Hourly location updates to 4 years
Operating Temperature -30°C až +70°C
Ingress Protection IP67
Impact Protection IK09
Dimension 110 × 70 × 30 mm
Weight 202 g
Installation Wall Screw Mounting, 3M Tape Mounting, Cable-tie Mounting
Where to apply and areas of application
An outdoor tracker designed to track your location. It is ideal for warehouses, construction sites, cars, containers or smart farming.
Parameters and specifications
LoRaWAN Frekvence
EU868
Výkon
16dBm
Sensitivity
-137dBm@300bps
Mode
OTAA/ABP Class A
GNSS Positioning
Position Accuracy
5.0 m (Direct Line of Sight)
Resolution
Longitude/Latitude:
0.000001
Time To First Fox
Cold Start: 37s Average
Hot Start: 1s Average
Sensitivity
Tracking -167dBm
Reacquisition -160dBm
Cold Start -148dBm
Hot Start -159dBm
Wi-Fi
Indoor asset location using Wi-Fi access point scanning (device doesnot connect to Wi-Fi)
Wi-Fi Parameters
BSSID, RSSI
Wi-Fi Standard
802.11b/g/n2. 4GHz
Device Motion
Normal/Tilt
Temperature Range
-40 to 125°C
Resolution
0,1°C
Power On & Off
NFC, Power Button (Internal)
Configuration
NFC, Bluetooth 5. 3
Power Supply
4×2700mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life (25°C)
Twice Daily Location Updates to 15 years
Tenth Daily Location Updates to 8 years
Hourly location updates to 4 years
Temperature
-30°C to +70°C
Ingress Protection
IP67
Impact Protection
IK09
Dimension
110 × 70 × 30 mm
Weight
202 g
Installation
Wall Screw Mounting, 3M Tape Mounting, Cable-tie Mounting
Where to apply and areas of application
An outdoor tracker designed to track your location. It is ideal for warehouses, construction sites, cars, containers or smart farming.
