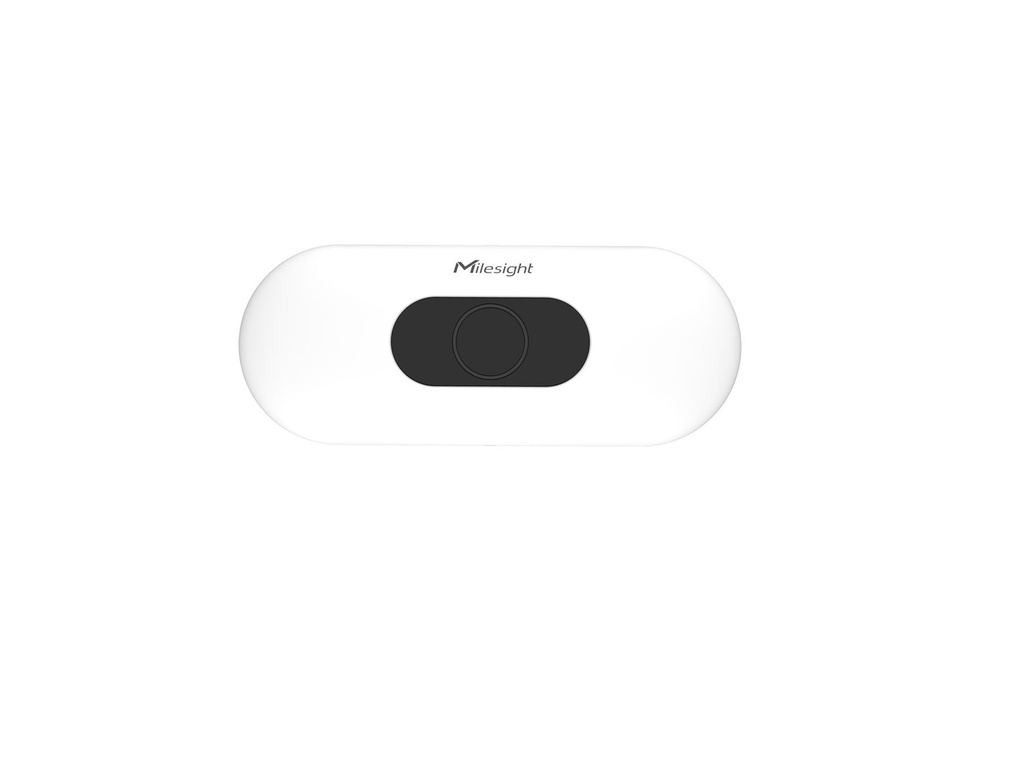

ASPERIOT: VS133-P
Built-in AI Algorithm
The new generation people counting sensor offers high accuracy and better adaptability for different scenarios. With AI and ToF, crowds can be filtered and area monitoring tailored to specific needs. The sensor is able to filter unwanted objects, is not dependent on the installation height and has a higher resistance to light interference.
In addition to counting people, the sensor recognizes specific categories such as staff or adults and children.
Built-in AI Algorithm
The new generation people counting sensor offers high accuracy and better adaptability for different scenarios. With AI and ToF, crowds can be filtered and area monitoring tailored to specific needs. The sensor is able to filter unwanted objects, is not dependent on the installation height and has a higher resistance to light interference.
In addition to counting people, the sensor recognizes specific categories such as staff or adults and children.

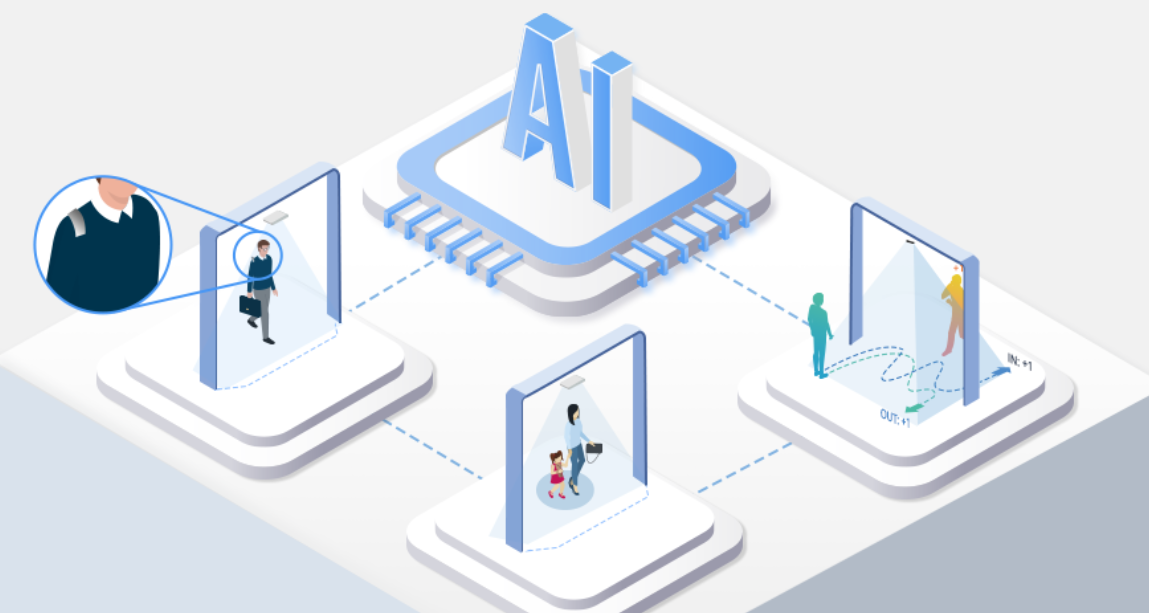

Bi-DirectionalPeople Counting
The device has the ability to count arrivals and departures at the same time and provides more accurate information by filtering out excess counts of people moving around. In addition, people detection is 100% anonymous.
People Counting
The device has the ability to count arrivals and departures at the same time and provides more accurate information by filtering out excess counts of people moving around. In addition, people detection is 100% anonymous.
Personnel Management
Accurately capturing traffic and duration within up to 4 customizable areas, users can gain useful information to improve queue management. Passersby are filtered to achieve accurate monitoring.
Personnel Management
Accurately capturing traffic and duration within up to 4 customizable areas, users can gain useful information to improve queue management. Passersby are filtered to achieve accurate monitoring.

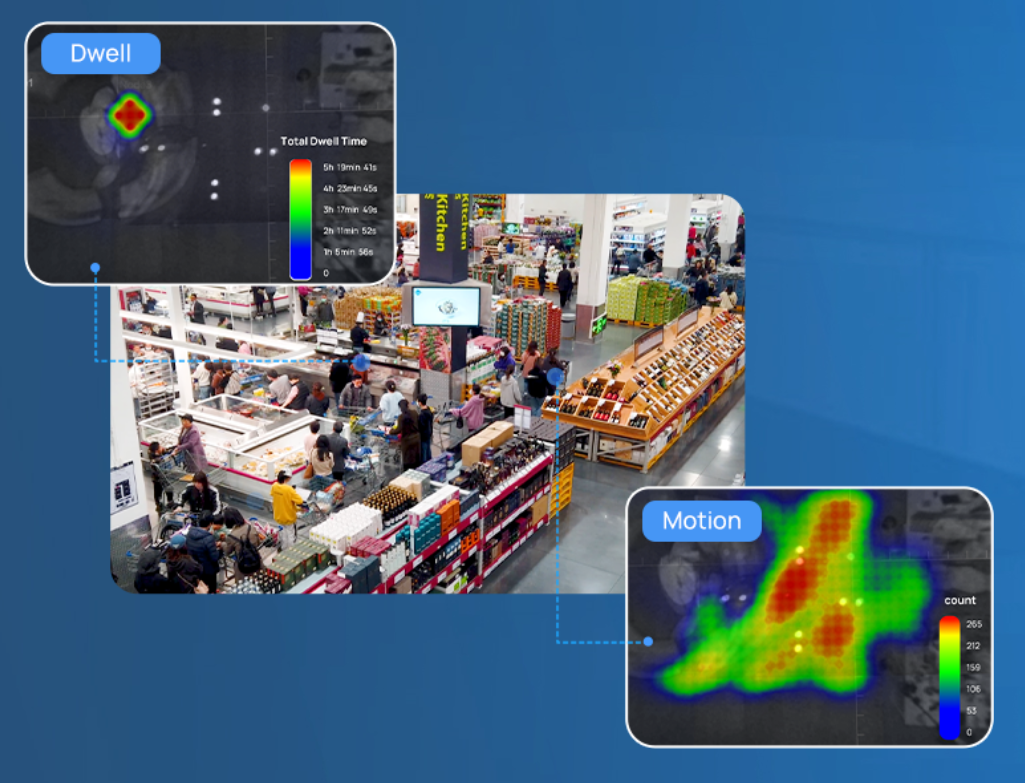

Heat Map
The sensor captures the flow of people, length of stay and movement, creating a comprehensive heat map. It provides a better representation of the space and improves the understanding of customer behavior, based on which it is possible to optimize decision-making and store layout.
Heat Map
The sensor captures the flow of people, length of stay and movement, creating a comprehensive heat map. It provides a better representation of the space and improves the understanding of customer behavior, based on which it is possible to optimize decision-making and store layout.
Application areas
Application areas
Retail Store
Mall
Subway
Retail Store
Mall
Subway
Parameters and specifications
ToF FoV
98° horizontal, 80° vertical
ToF Light Beam
940 nm (invisibile)
Measuring Accuracy < 3.5 cm
Detection Range
0.5 to 3.5 m
Rozlišení up to 99,8 %
Advanced Feature Customized Multiple Counting Lines, U-turns Filtering, Bi-directional Counting,
Children/Adults Differentiation, Staff Detection
Ethernet Port 1 × RJ45 10/100 Mbps (PoE PD)
Protocol
HTTP, HTTPS, MQTT, MQTTS, NTP
Serial Interface
1 × RS485
Button 1 x Reset
LED Indicator 1 × RGB LED indicator
Local Storage Store up to one million data records and supports to export csvfile
Power Supply
802.3at PoE
Power Consumption 9,4 W, max 23,8 W
Operating Temperature -20°C to 50°C
Relative Humidity 0-95 % (non-condensing)
Ingrees Protection IP40
Dimension
180 × 26 × 72 mm
Weight 226 g
Installation Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting(with Optional Multifunctional Bracket)
Parameters and specifications
ToF FoV
98° horizontal, 80° vertikal
ToF Light Beam
940 nm (Invisible)
Measuring Accuracy
< 3.5 cm
Detection Range
0.5 to 3.5 m
Recognition Rate
up to 99,8 %
Advanced Feature
Customized Multiple Counting Lines, U-turns Filtering, Bi-directional Counting, Children/Adults Differentiation, Staff Detection
Ethernet Port
1 × RJ45 10/100 Mbps (PoE PD)
Protocol
HTTP, HTTPS, MQTT, MQTTS, NTP
Serial Interface
1 × RS485
Button
1 x Reset
Indicator
1 × RGB LED indicator
Local Storage
Až jeden milion datových záznamů, podpora exportu souboru csv
Power Supply
802.3at PoE
Power Consumption7,8 W, max 22,2 W
Operating Temperature
-20°C to 50°C
Relative Humidity
0-95 % (non-condensing)
Ingrees Protection
IP40
Dimension
180 × 26 × 72 mm
Weight
226 g
Installation
Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting(with Optional Multifunctional Bracket)
