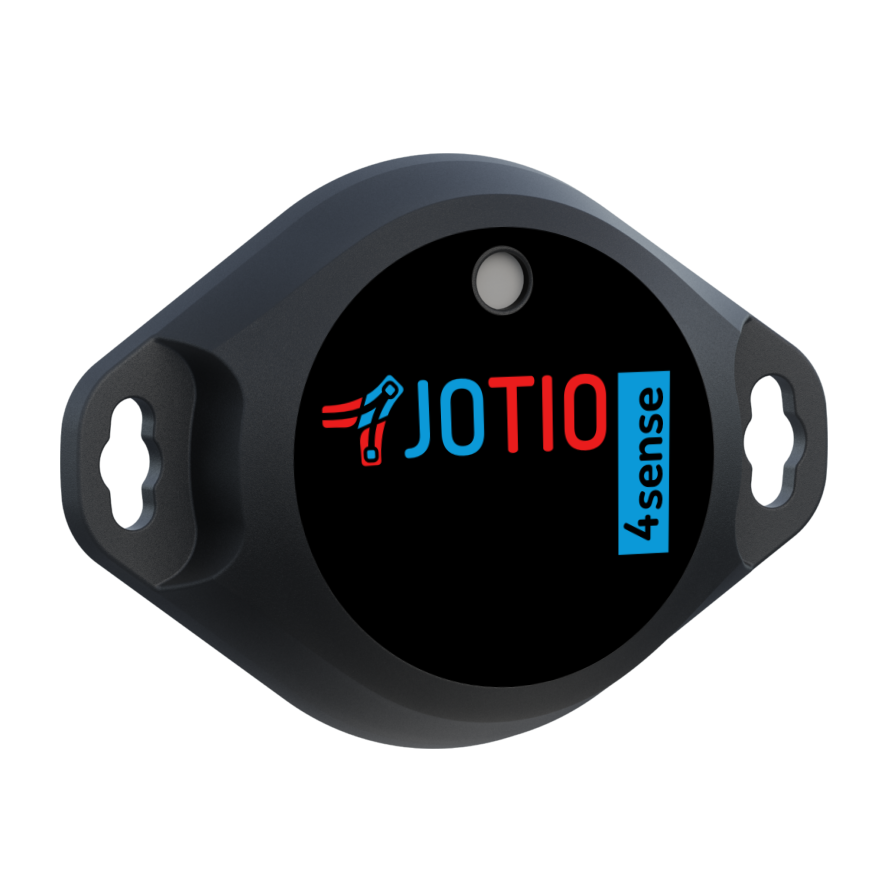

JoTio 4Sense Pro

https://www.jotio.tech/web/image/product.template/103/image_1920?unique=08f8015

Wireless sensor for monitoring temperature, humidity, atmospheric pressure and movement.

4,392.30 Kč 4392.3 CZK 4,392.30 Kč  With VAT

3,630.00 Kč  With VAT

Not Available For Sale

This combination does not exist.

Contact Us


Solutions for precise monitoring

JoTio 4Sense Pro is a device that will meet almost all your monitoring needs! Its main advantage is its highly accurate temperature sensing with a resolution of a thousandth of a degree. In addition to temperature, it also senses humidity through a special membrane that provides a high and durable housing. The device is very well made and can handle industrial applications. In addition to temperature and humidity, the device also measures atmospheric pressure or motion via a built-in accelerometer. Its use is therefore very general and often fits where one would not even think of it.

Complete solution

JoTio 4Sense Pro is a very versatile and versatile device. With one device you can monitor temperature, humidity, movement and air pressure.

Temperature and humidity map

One of the main advantages of this sensor is its wireless communication and therefore easy installation. It is thus possible to create unique temperature, humidity or pressure (or motion/shake) monitoring very quickly and easily.

​An example is the fridge temperature map, which can provide valuable information for the correct storage of medicines, food, etc. An almost identical application can be used for larger refrigerated boxes integrated in vans or trucks. This way you will have a complete overview of the conditions to which the goods being transported are exposed and thus preserve their quality.​

3D temp mapa

Senzor lze využít pro monitoring přepravních nebo skladovacích podmínek

Senzor lze využít pro monitoring přepravních nebo skladovacích podmínek

Food


Chemicals

Drugs


Drugs


Chemicals

Food

Parameters and specifications
​Measured quantities ​ ​​​temperature, humidity, pressure, movement
Operating temperature ​​ ​ ​ -40°C to 85°C (recommended range -20°C to 70°C)
Humidity range ​ ​ ​ ​ ​ ​​​0 - 95 %
Bar. pressure range ​ ​ ​ ​ ​​500-1100hPA​​
Designed for ​ ​ ​ ​​​​indoor and outdoor installation
Wireless communication ​ ​​BLE 5.0
Power ​ ​ ​ ​ ​ ​​1 x Battery, voltage 3.6V, capacity 2000mAh
Color ​ ​ ​ ​black, UV stable
CPU ​ ​ ​ ​​ ​ ​ ​ ​ ​​​Nordic Semi conductorn RF52832 ARM®Cortex™- M4FCPU 512kB
Flash Memory ​ ​ ​ ​ ​ ​​​​​64kB RAM +4dBm transmission power
Bluetooth ​ ​ ​ ​ ​ ​​​ ​ ​Bluetooth Low Energy
Battery ​ ​ ​ ​​ ​ ​ ​ ​ ​​1000mAh Li/MnO2CR2477 (User repleceable)
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​​1000mAh Li/MnO2CR2477T (User repleceable)
Battery Life ​ ​  ​ ​ ​ ​ ​ ​to 10 let (depending on the software used)
Suuported OS ​ ​ ​ ​ ​ ​ ​​​Android, iOS
Real operating time  ​​ ​ ​3 years with standard Ruuvi firmware
Frequency ​ ​ ​​ ​ ​ ​ ​ ​​0,8 Hz@ 4 dBm and samples at 0.4 Hz
Cover protection ​ ​ ​​ ​ ​ ​ ​​IP67​
Dimension​ ​ ​ ​ ​ ​ ​ ​​56 x ​77 x 15 mm
Weight ​​ ​ ​ ​ ​ ​​39 g​

3D temp mapa

Temperature and humidity map

One of the main advantages of this sensor is its wireless communication and therefore easy installation. It is thus possible to quickly and easily create a unique monitoring of temperature, humidity or pressure (or motion/shake).
An example is the fridge temperature map, which can provide valuable information for the correct storage of medicines, food, etc. An almost identical application can be used for "larger refrigerated boxes" integrated in vans or trucks. You will thus have a completely accurate overview of the conditions to which the goods being transported are exposed and maintain their quality.


Parametry a specifikace
Měřené veličiny
teplota, vlhkost, tlak, pohyb

Operating temperature
​-40°C to 85°C
recommended range -20°C to 70°C)

Humidity range
0 - 95 %

Rozsah bar. tlaku ​ ​ ​ ​ ​​500-1100hPA​​

Suitable for
indoor and outdoor installation

Wireless communication
BLE 5.0

Power supply
1 x Battery, voltage 3.6V, capacity 2000mAh

Color
​​​black, UV stable

CPU
​Nordic Semi conductorn RF52832 ARM®Cortex™- M4FCPU 512kB

Flash Memory​​​​64kB RAM +4dBm transmission power

Bluetooth
Bluetooth Low Energy

Battery
​​1000mAh
Li/MnO2CR2477
(User replaceable)
​​1000mAh
Li/MnO2CR2477T
(User replaceable)

Battery Life
​up to 10 years (depending on the software used)

Supported OS
Android, iOS

Real operating time
1-3 years with standard Ruuvi firmware

Frequency
​0,8 Hz@ 4 dBm and samples at 0.4 Hz

Ingress Protection
IP67​

Dimension​ ​ ​
56 x ​77 x 15 mm

Weight ​ ​
​39 g​
